Advantages and strengths

Avoids the cutting of the steel cladding.

Technical characteristics

Reference	Weight (lb)	Sizes ('')	Quantity
Ref. PLAQUEFIXBARDAGE Code A0009001 Fastening plate for cladding	3,35 lb	28 - 7 ''	Quantité maximum disponible pour ce magasin + -
Ref. BANDEETANCH10M Code A0008888 Roll of sealing tape	0 lb	72 ''	Quantité maximum disponible pour ce magasin + -
Ref. RIVETPOP77 Code A0008881 Pop-clinchalu7.7	0 lb	0,30 ''	Quantité maximum disponible pour ce magasin + -

Fastening plate for cladding
Reference :	PLAQUEFIXBARDAGE
Weight (lb)	3,35 lb
Sizes ('')	28 - 7 ''
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Roll of sealing tape
Reference :	BANDEETANCH10M
Weight (lb)	0 lb
Sizes ('')	72 ''
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Pop-clinchalu7.7
Reference :	RIVETPOP77
Weight (lb)	0 lb
Sizes ('')	0,30 ''
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

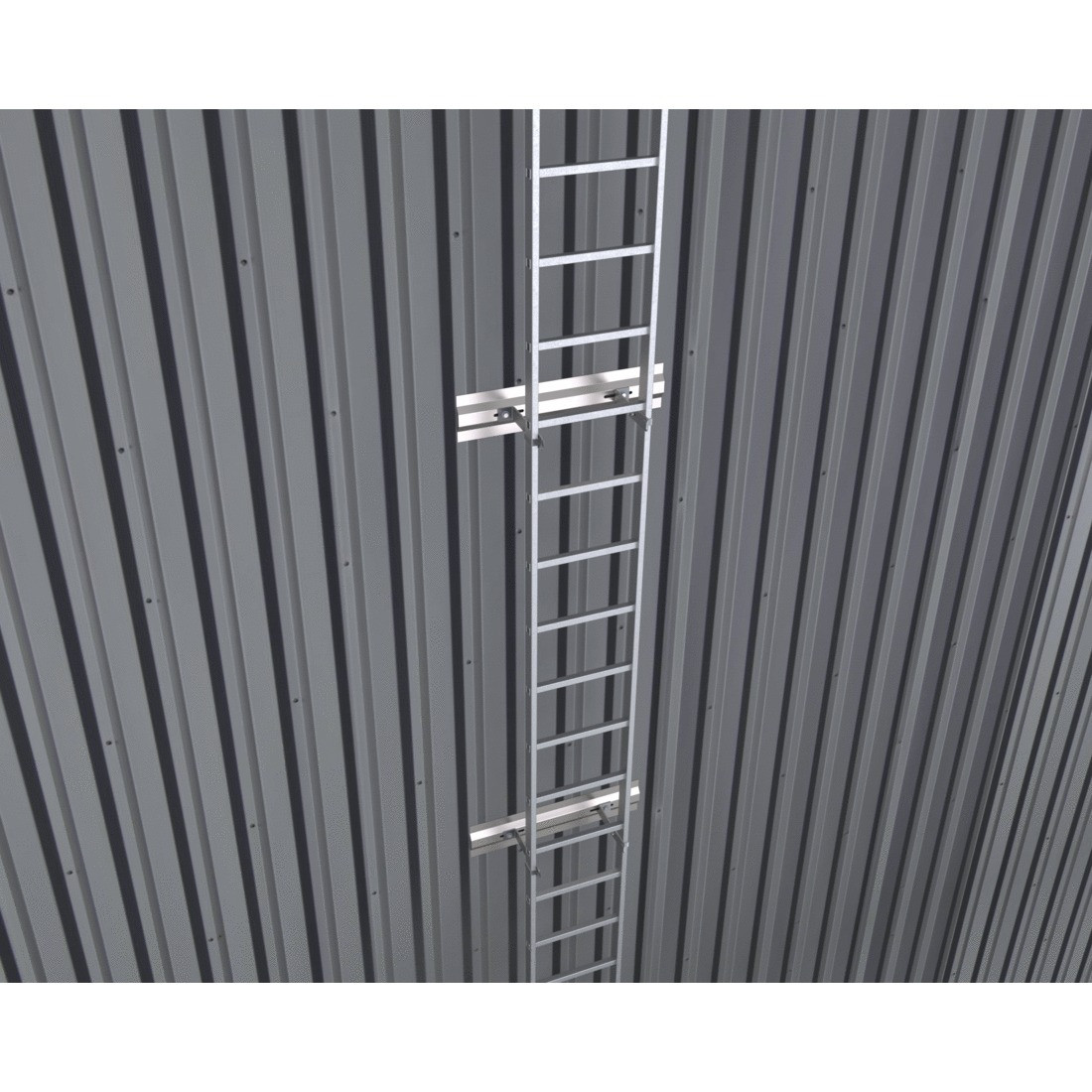

Accessory for fastening the crinoline ladder on the steel cladding.

Waterproofing preserved by the use of neoprene washers and sealing tape.

Maximum spacing between plates: 2.50 m.

Thickness of the plate: 4 mm

Recommended fastening: 8 clinches pop alu 7.70 mm or 16 self-drilling screws

Provide a sealing tape role for 6 fastening plates
